Rectangular conductor of copper covered with glassfibre yarn and epoxy class 180

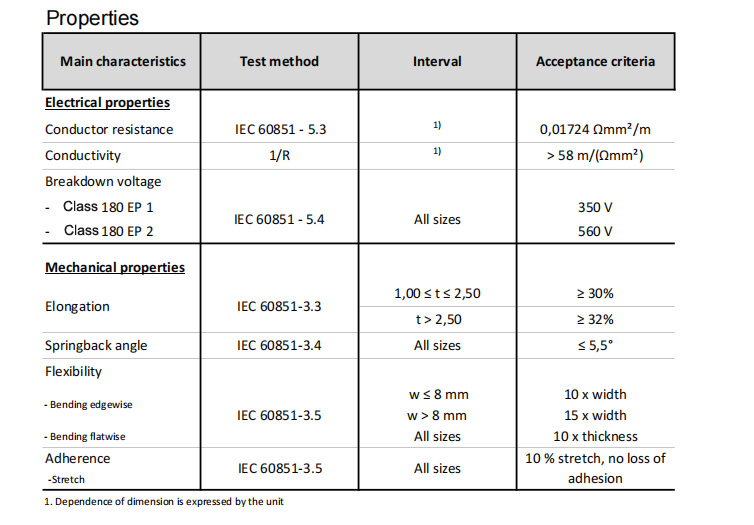

Properties:
Excellent resistance to mechanical stress
B-stage cured epoxy layer allows pre-pressing of winding

Field of application:
- Stator coils
- Large generators
- Electric motors

Class: 180
Temperature index ≥ 180°C acc. to experience
Heat shock: ≥ 200°C

Shelf life: 6 month, under normal ambient conditions

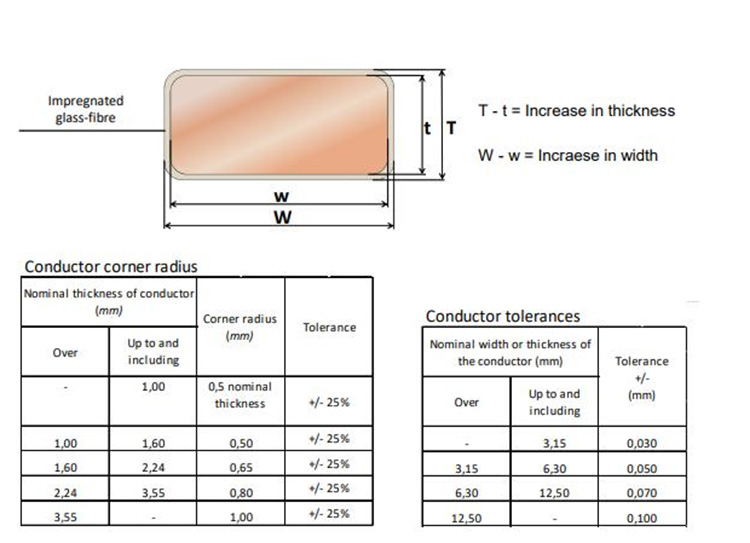

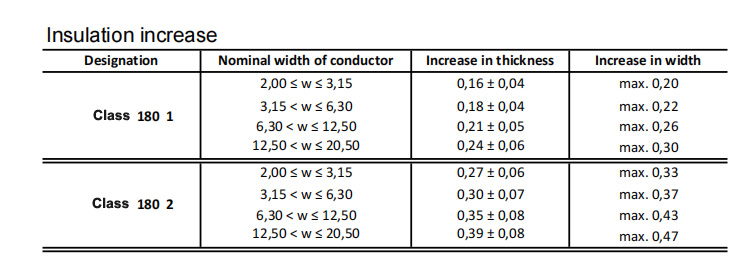

Insulation:
1- 2 layers of glass-fibre yarn
Impregnation: Polyesterimide
Adhesive layer: Epoxy

Conductor material
EN 1977 - ETP1 CW003 A
EN 1977 - ETP CW004A
ASTM B49 - ETP C11000/C11040
