Enameled Rectangular Aluminum Wire, Flat Enameled Aluminum Wire -LP Industry

Enameled Rectangular Aluminum Wire

Aluminum Thickness(a): 0.8~10.0mm; Width(b): 2.0-25mm
Thermal Class (℃): 120; 180; 200 ; 220; 240
Standard: IEC, NEMA, GB, JIS

Download

Introduction

Enamels of Enameled Aluminum Flat Wire :
a)Polyurethane:Very good solderability and high thermal properties
b)Polyesterimide: Solderable at high temperatures, high thermal properties and good chemical resistance.
c)Polyamidimide: Very high thermal properties and good chemical resistance.
d)Polyimide: Excellent thermal properties, excellent chemical and high radiation resistance.

Product Features

Properties Enameled Aluminum Flat Wire :

Excellent thermal stability, excellent dielectric and mechanical properties
Very good chemical resistance to common solvent and coolants.
Better sliding during coil insertion in slots (reduced friction factor).
High resistance to abrasion
Chemically resistant

Parameters

Name	Enameled Rectangular Wire
Conductor	Aluminum
Dimension	Thickness(a): 0.8~10.0mm; Width(b): 2.0-25mm We can produce the Ultra-Flat Large Sizes wire
Thermal Class (℃)	120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Insulation thickness	Single, Heavy

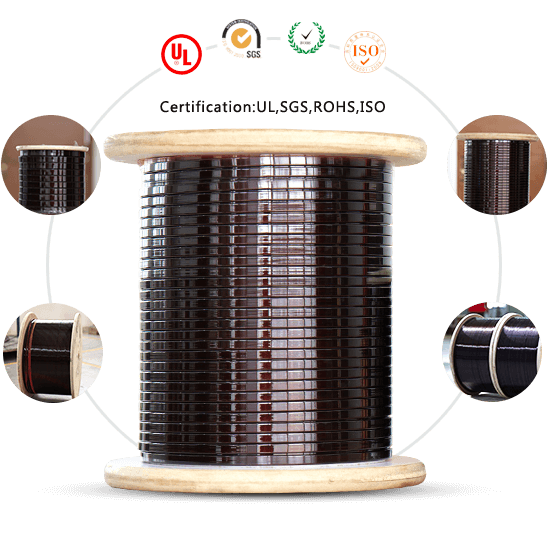

Certificate	UL
Standard	IEC,NEMA,GB,JIS

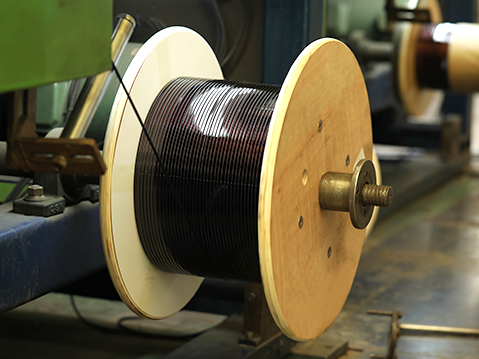

Packing	30kg ~150kg ply-wood spool (250400 /250500/ 250600 / 250730)
Application	Transformer; motor;generator; modern instrument; welding machine and so on

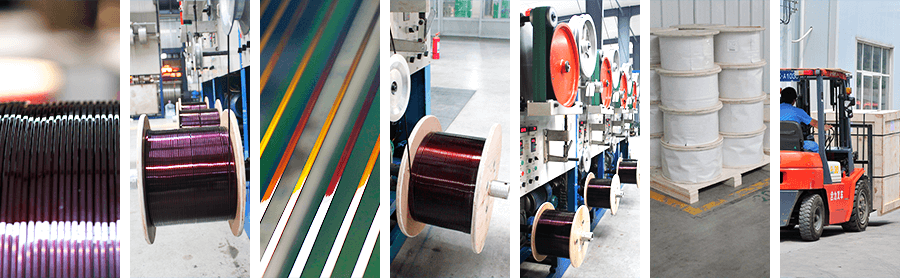

Application& Packing

Dry transformers/ Special transformers/Welding machines/Rectifiers /Reactors/Other large and low-voltage electromagnetic windings
